Standard Equipment

• 50 Ton hydraulic wrecker
• 99" sliding boom ; Locks on sliding system
• Dual 50,000lbs hydraulic planetary winches
• 7/8" x 200` steel cable on each drum
• Air clutch release on winches
• Air cable tensioners
• Direct mounted tandem hydraulic pump
• Dual 6-1/2" bore cylinders for power boom elevation
• Lock & safety valve on elevation and extension cylinders
• "V" shaped boom
• Directionnal boom sheave
• Nylon slide on boom
• Dual independant hydraulic rear jack legs
• Removable spades for jack legs
• Lubrication fittings on all moving parts
• Dual control

• LED Lights in levers control ; 2 pressure gauges
• Composite body 100-5/8'' wide (including fenders)
• 134CuFt of tool box storage
• Aluminum pannel with fork holders in big driver side tool box
• Aluminun pannel with chain hanger in small driver side tool box
• 2 Curb lights on each side
• 180" C.A. (from cab to center of rearmost axle)
• Sandblast & Epoxy primer paint on all steel pieces
• Modular body
• Rear mounted recovery anchors
• Federal standard #108 light group ; Mud flaps
• Electric plug & Air plug

• 2 Auxiliary 20,000lb winches mounted under the boom
• "L" shaped mounting plate 3/8"
• "L" shaped mounting plate T1 steel 3/8"
• Third stage boom
• Heavy duty axle-lift
• Super heavy duty axle-lift
• Tunnel tool box 24" to 72"
• Battery box inside the tunnel tool box
• Work lights in standard tool boxes
• Work lights in standard & tunnel tool box
• Light pylon
• Aluminum cover inside the light pylon
• Winch covers
• Aluminum checker plate on top of tunnel tool box
• Aluminum checker plate on rear steps
• 2 work lights under the bumper
• 17 marker light per side instead of 10

• Rear corner strobes
• Stainless work light in-between the tires
• 2 Adjustable aluminum shelves in passenger side small tool box
• Aluminum pannels in passenger standard tool boxes
• Wireless remote control
• Stainless underneath the marker lights
• Stainless on boom
• Stainless on mast
• Stainless on light pylon
• Stainless on winch covers
• Paint
• Installation

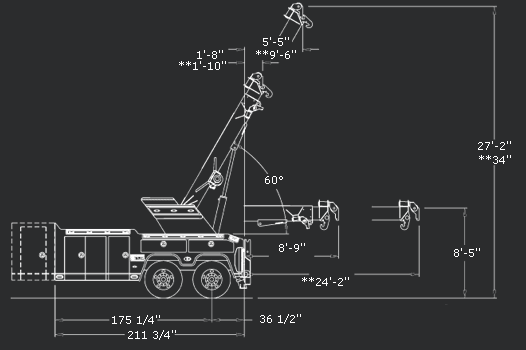

• Boom basic structural rating fully retracted : 100,000lbs
• Boom basic structural rating fully extended : 40,000lbs
• Reach past tailgate (3rd stage) : 290"
• Maximum Boom working height (3rd stage) : 408"
• Range of elevation : 0° - 60°

• H.D. : capacity fully retracted : 35,000lbs ; Reach : 71"
• H.D. : capacity fully extended : 15,000lbs ; Reach 110"
• S.H.D. : capacity fully retracted : 50,000lbs ; Reach : 86"
• S.H.D. : capacity fully extended : 20,000lbs ; Reach 136"

• Front Axle : 16,000lbs minimum
• Rear Axle : 40,000lbs minimum
• C.A. available : from 180" (from cab to center of rearmost axle)
• Double frame
• Call NRC for more information
